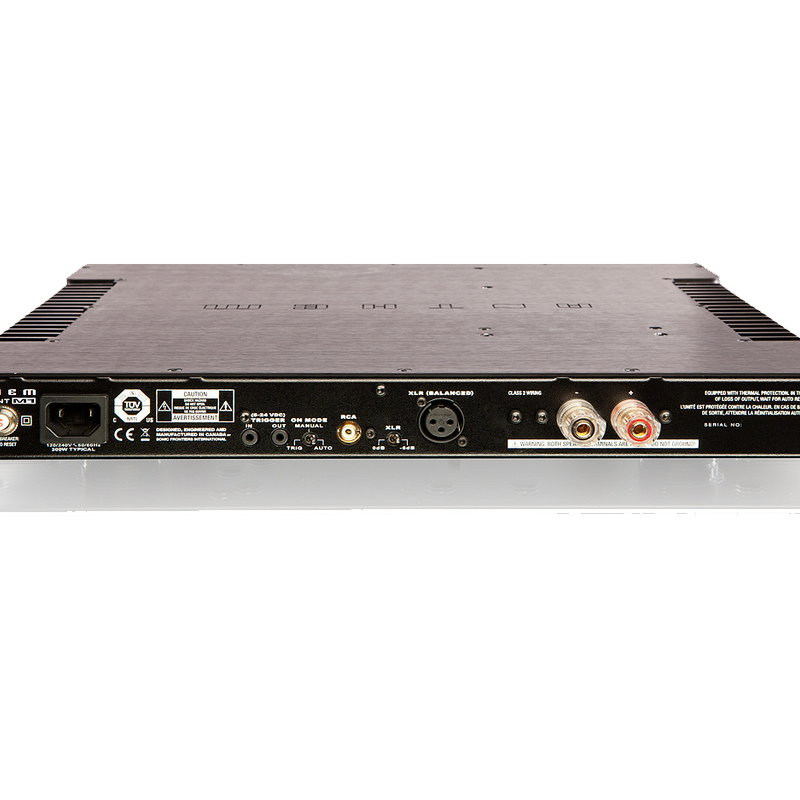

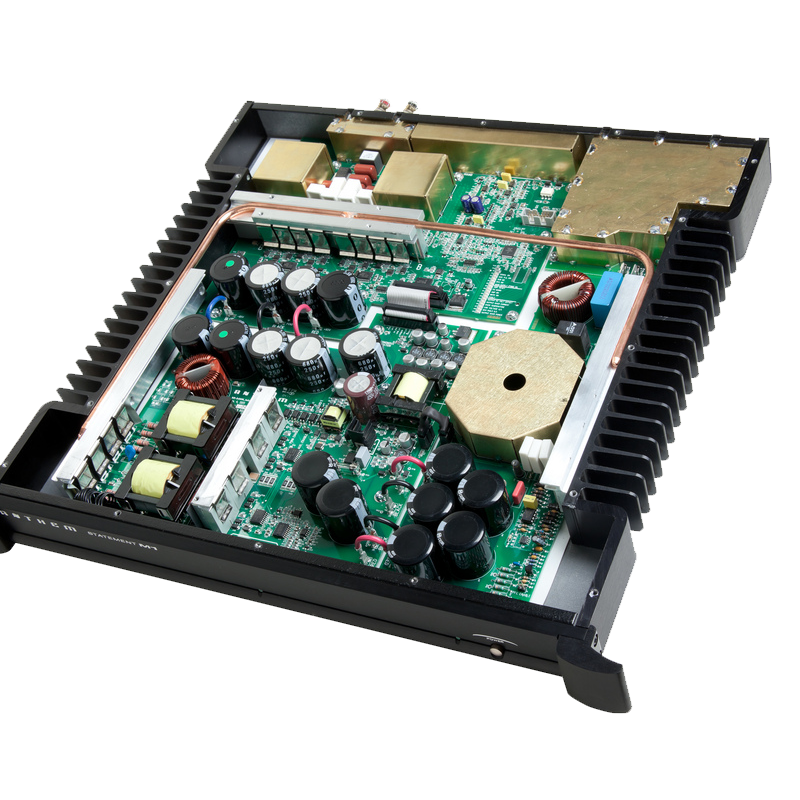

Anthem M1 Monoblock Power Amplifier Product Description
Power Output continuous, 20 Hz to 20 kHz, <0.1% THD+N |
8 Ω | 4 Ω | 3 Ω | 2 Ω | With 120V AC supply the amplifier’s maximum output into impedances 4 Ω and lower, as well as its maximum duration, vary depending on line voltage regulation. |
|
1000 W | 2000 W | 2400 W | >2000 W depending on line voltage regulation |
|||
Frequency Response 20 Hz to 20 kHz | Open circuit | 8 Ω | 4 Ω | 2 Ω | ||
+/- 0.1 dB |
+/- 0.1 dB | +/- 0.1 dB | +/- 0.2 dB | |||
Power Bandwidth 1000 W at 8 Ω | 5 Hz to 45 kHz | |||||
THD+N at 1 kHz, 8 Ω | 1 W | 10 W | 100 W | 1000 W | ||
0.0001 | 0.0001 | <0.03 % | <0.06 % | |||
IMD 19 kHz + 20 kHz, CCIF | 0.00003 | |||||
S/N Ratio ref. 1000 W, IEC-A | 113 dB | |||||
Voltage Gain | 29 dB | |||||
Input Sensitivity | 100 mV for 1 W output, 3.2 V for 1000 W output (8 Ω) |
|||||
Input Impedance | 10 kΩ (RCA), 20 kΩ (XLR) |
|||||
Damping Factor | 800 to 1400 depending on frequency |
|||||
XLR Configuration | Pin 1: Ground, Pin 2: Positive, Pin 3: Negative |
|||||
POWER REQUIREMENTS | Consumption in a typical music/theater installation | standby mode, 120V mains | standby mode, 240V mains | operate mode, idle | typical operation | Where mains voltage is 120V, one dedicated 15A circuit per amplifier is recommended depending on speaker. A 20A circuit is adequate for two amplifiers playing music where speaker impedance is 8 Ω. This product operates from a single phase AC power source that supplies between 108V and 264V at a frequency of 50 or 60 Hz. |
<1 W | <2 W | 33 W | 300 W | |||
DIMENSIONS | Height with feet |
2 1/4 inches (5.7 cm) | ||||
Height without feet | 1 rack unit | |||||
Width standard handles | 19 1/4 inches (49 cm) | |||||
Width rackmount handles | 19 inches (48.3 cm) | |||||
Depth | 18 3/4 inches (47.6 cm) |
|||||
Weight (unpacked) | 20 lb (9 kg) |
