ANTHEM MCA 525 AMPLIFIER Product Description
| Brand | Anthem | |||
| POWER OUTPUT (PER CHANNEL) |
Impedance | |||
| 8Ω | 225 W | |||
| 4Ω | 400 W | |||
| 2Ω | 600 W | |||

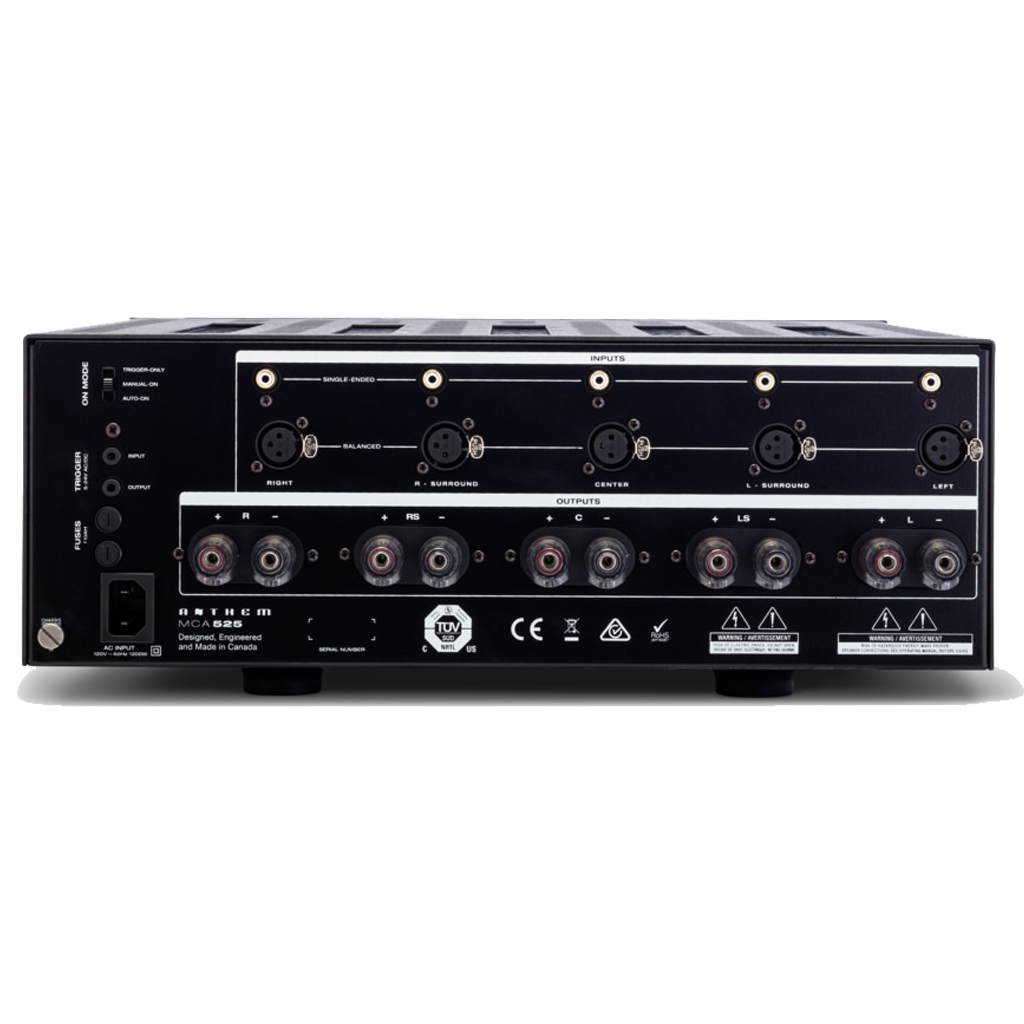

| INPUTS / OUTPUTS | Inputs | Single-Ended, Balanced, Relay Trigger (3.5-mm Mono Jack) |
||
| Outputs | Speaker Binding Posts, Relay Trigger (3.5-mm Mono Jack) |
|||
| SWITCHES | Front Panel | Power (On/Off) | ||

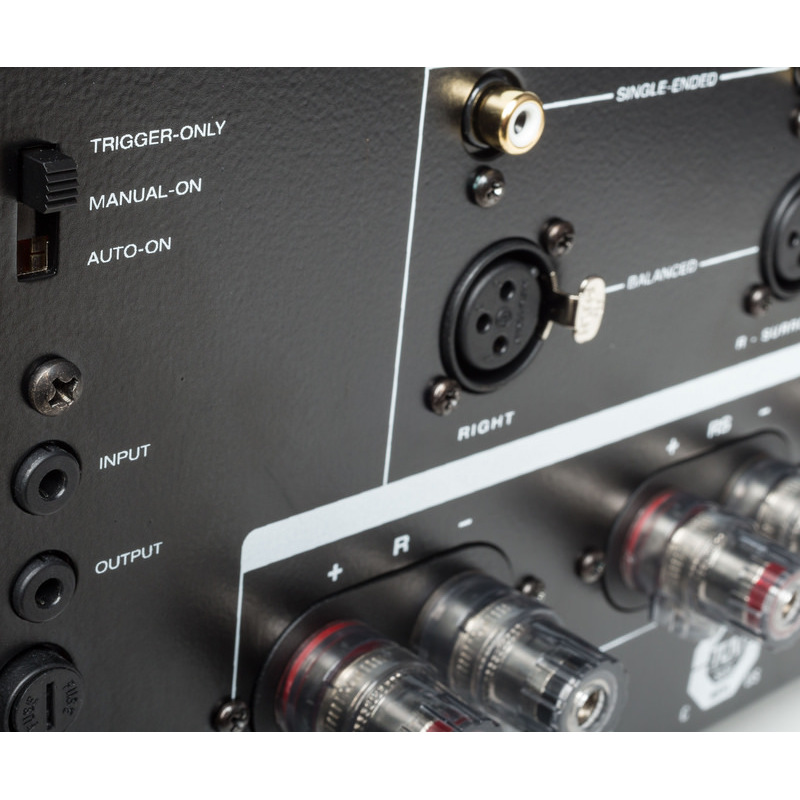

| Rear Panel |
3 On/Off Modes (Trigger, Manual, Auto) |
|||
| THD AT 100W | at 1 kHz | 0.001% | ||
| at 20 kHz |
0.015% | |||
| IMD AT 100 W | ITU-R (19 kHz + 20 kHz) | 0.001% | ||
| SMPTE (60 Hz + 7 kHz) |
0.002% | |||
| FREQUENCY RESPONSE, 20 HZ TO 20 KHZ |
open circuit | ± 0.1 dB | ||
| 8Ω | ± 0.1 dB | |||
| 4Ω | ± 0.1 dB | |||
| 2Ω | ± 0.2 dB | |||
| OTHER SPECIFICATIONS | SNR, IEC-A, ref. 225 W | 120 dB | ||
| Power Bandwidth, -3 dB at 200 W into 8 ohms |
90 kHz | |||
| Slew Rate |
30 V/μs | |||
| Damping Factor, 20 Hz to 1 kHz |
300 | |||
| Channel Separation, 100 Hz to 10 kHz |
>65 dB | |||
| Input Impedance (RCA / XLR) |
10 kΩ / 15 kΩ |
|||
| Input Sensitivity, 225 W into 8 Ω |
1.5 Vrms | |||
| Voltage Gain |
29 dB | |||
| POWER CONSUMPTION | MCA 525 | MCA 325 | MCA 225 | |
| standby | 2.0 W | 1.4 W | 1.0 W | |
| idle | 80 W | 47 W | 35 W | |
| typical | 550 W | 350 W | 240 W | |
| high output |
1200 W | 750 W | 500 W | |
| DIMENSIONS | Height | 6-5/8″ (16.9 cm) | ||
| Height with Rackmount Kit |
4U | |||
| Width | 17-1/4″ (43.9 cm) |
|||
| Depth | 18-1/8″ (46 cm) | |||
| WEIGHT | MCA 525 | 61 lb (27.5 kg) | ||
| MCA 325 | 43 lb (19.5 kg) | |||
| MCA 225 | 40 lb (18 kg) | |||
| POWER REQUIREMENT | 120 V version: | In countries where the line voltage is 120 V, this product operates from a single phase AC power source that supplies between 108 V and 132 V at a frequency of 60 Hz. |
||
| 220-240 V version: |
In countries where the line voltage is 220, 230, or 240 V, this product operates from a single phase AC power source that supplies between 198 V and 264 V at a frequency of 50 Hz. |
|||
