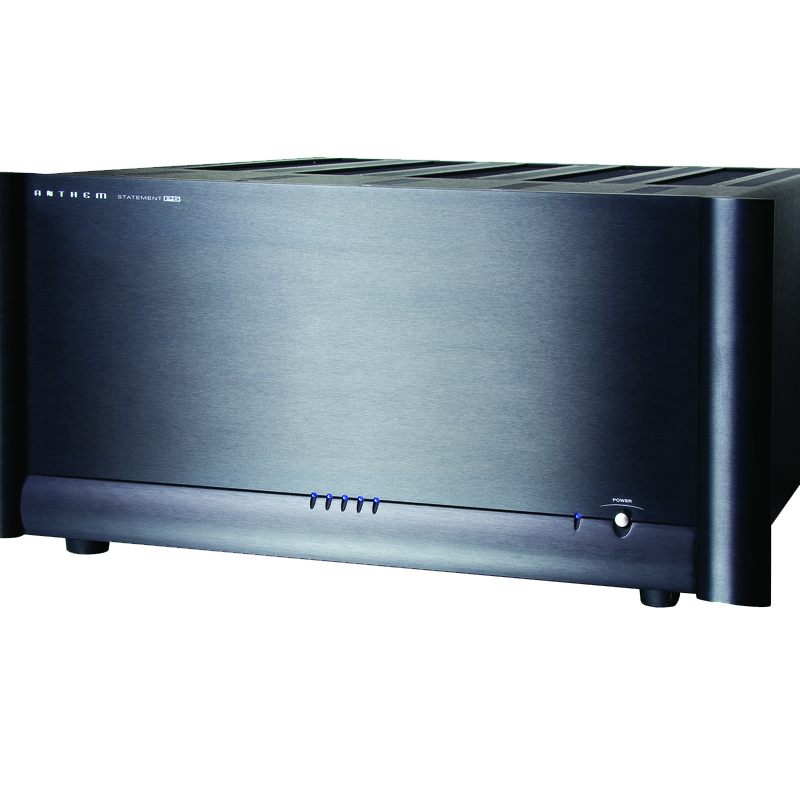

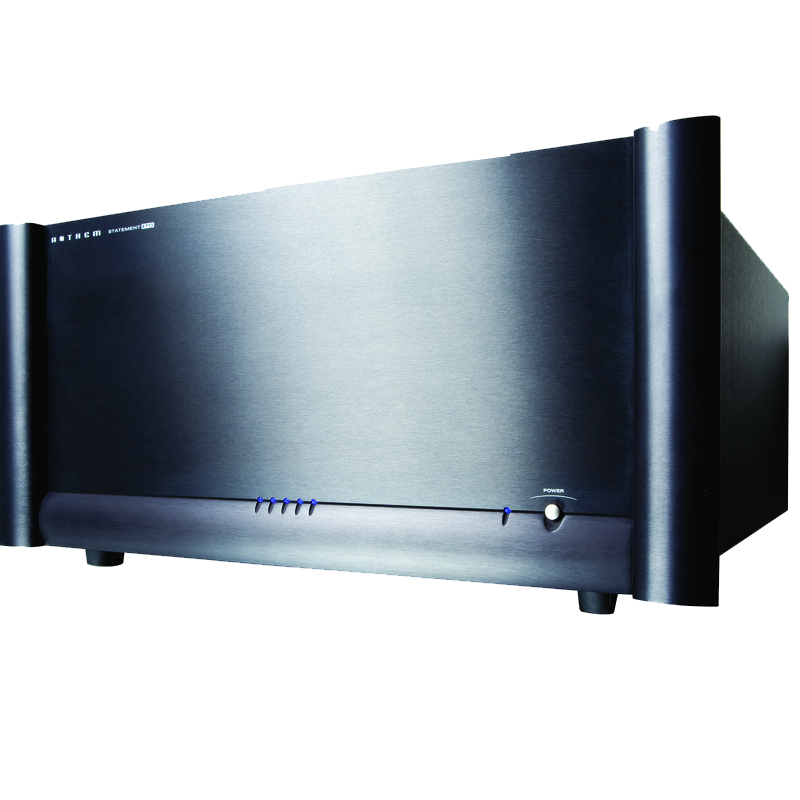

Anthem P5 5-channel Power Amplifier

Anthem P5 5-channel Power Amplifier

In life, we admire the “heart.” When we say someone has the heart we mean passion, spirit, fortitude. And we applaud it. While the amplifier is the brawn behind every successful music and movie presentation, it is also the heart! Its role is as crucial as that of the speakers in its ability to render delicate musical detail one moment and deliver room-shaking explosions the next. The most exquisite piece of music falls flat without clean, quiet power to sustain it through to its natural, musical ebb. Movie special effects require an inordinate supply of stable, high current power to give visceral credibility to the “special” aspect of each effect! In fact, all truly successful sound reproduction requires “heart.” The heart of an amplifier rests with its design and it is here that P2 and P5 amplifiers reveal their high-end lineage: multi-layered, hand-designed circuit boards with thick copper traces; rugged, independent power supplies with tuned toroidal power transformers for each amplifier channel; fourteen rugged bipolar output devices per channel; custom-designed convection-cooled heatsinks with serrated fins; a “no-fuse” design strategy. And the list goes on.

Category:

Anthem P5 5-channel Power Amplifier Product Description



Brand Anthem
GENERAL Inputs 5 Single-Ended, 5
Balanced, 1 Relay Trigger (3.5 mm Mono Jack)
Outputs 5 Pairs Speaker
Binding Posts, 1 Relay Trigger (3.5 mm Mono Jack)
THD+N
(225 W into 8 Ω)
0.0007% at 1 kHz,
0.008% at 20 kHz
IMD 0.00019% (CCIF, 325 W
into 8 Ω)
POWER
BANDWIDTH
10 Hz to 150
kHz
(+0 -3 dB, 325 W into 8 Ω)
FREQUENCY
RESPONSE
20 Hz to 20 kHz (+0
-0.15 dB),5 Hz to 100 kHz (+0 -2 dB)
INPUT
SENSITIVITY (RCA and XLR 0 dB inputs)
1 Vrms in for 28.3
Vrms out
(100 W into 8 Ω)
INPUT
IMPEDANCE
18 kΩ (RCA), 22
kΩ (XLR)
DAMPING
FACTOR
>600 at 20 Hz, 400
at 1 kHz (ref. 8 Ω)
S/N
RATIO
125 dB, A-weighted
(ref. 325 W)
CROSSTALK
(between any two channels)
-140 dB (20 Hz), -80
dB (20 kHz)
VOLTAGE
GAIN
29 dB
SLEW
RATE
40 V/µs
SWITCHES Front Panel Power (On/Off)
Rear
Panel
On/Off Modes
(Trigger, Manual, Auto), Inputs (RCA, XLR, XLR -6dB)
POWER OUTPUT Impedance # of Channels Driven
1 325 W
All 325 W
1 500 W
All 500 W
1 675 W
All 675 W
POWER REQUIREMENTS SUPPLY VOLTAGE 105 to 130 V, 60 Hz
POWER
CONSUMPTION
2 x 1800 W
DIMENSIONS Height 9-3/8 inches (23.8
cm) including feet
Width Faceplate 19-1/4
inches (49 cm)
Chassis 17-1/4 inches (43.8 cm)
Depth 22-1/2 inches (57.2
cm) including handles
Weight
(unpacked)
130 lb (59 kg)
