DALI PHANTOM S-180

DALI PHANTOM S-180

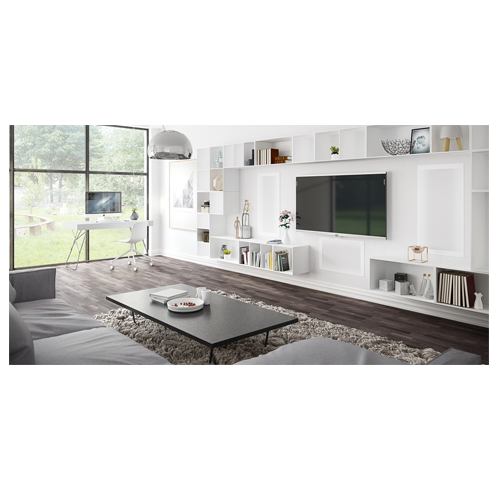

PRODUCT DETAILS The slim DALI PHANTOM S-180 in-wall loudspeaker offers a full frequency response similar to that of a floorstanding loudspeaker, but without sacrificing valuable living room space. It delivers a no compromise in-wall audio performance with the use of proven speaker technologies. This includes our characteristic wood fibre cones, low-loss rubber surround, solid MDF front baffle, our signature hybrid tweeter module and our superior innovative magnet design including a SMC pole piece. All models are built around a rotatable hybrid tweeter module making them easy to install for any audio use – be it stereo, centre channel or surround. We have optimised the primary 8” wood fibre woofer for both bass and mid-range performance. To further enhance the bass performance, we have paired the primary woofer with a 10” passive carbon fibre radiator. This ensures that the PHANTOM S-180 really stands out from the crowd. The ultra slim 103 mm cabinet design fits into almost any standard wall. See the PHANTOM S whitepaper (below) for further technical information.

DALI PHANTOM S-180 Product Description

Brand Dali
Product
series
PHANTOM INSTALL SPEAKERS
Frequency
Range (+/-3 dB) [Hz]
49 – 25,000
Sensitivity
(2,83 V/1 m) [dB]
89
Nominal
Impedance [ohms]
6
Maximum
SPL [dB]
109
Recommended
Amplifier Power [W]
40 – 200
Crossover
Frequency [Hz]
2,800 / 15,000
Hybrid
tweeter module, High frequency driver, Quantity
1 x 17 x 45 mm
Hybrid
tweeter module, High frequency driver Diaphragm type
Ribbon
High
frequency driver, Quantity
1 x 28 mm
High
frequency driver, Diaphragm type
Soft Textile Dome
Low
frequency driver, Quantity
1 x 8″
Low
frequency driver, Diaphragm type
Wood Fibre Cone
Low
frequency passive driver, Quantity
1 x 10″
Low
frequency passive driver, Diaphragm type
Carbon fibre cone
Enclosure
type
Closed Box With A Passive
Radiator
Connection
Input
Single Wire
Recommended
Placement
In-Wall
Centre / Soundbar
Dimensions
(HxWxD) [mm]
898 x 453 x 110
Cut-Out
Dimensions (HxWxD) [mm]
865 x 420 x 103
Weight
[kg]
18.5
